Double Jersey Open Width Circular Knitting Machine
Following the gear design without unfolding the fabric, allows easy rolling up of cloth. Its safety shutdown device functions when the cloth is not cut completely.
- Top class fabric quality without any center crease over the entire fabric surface
- Less cutting waste when further processing fabric
- High production volume
- Application Area: sportswear and leisurewear
- Applicable Yarn Materials: cotton, synthetic fiber, silk, artifical wool, mesh or elastic cloth.
Main Features

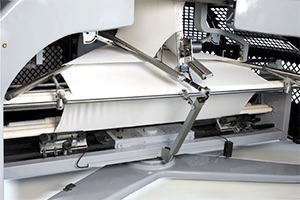

Cloth Cutting System
Following the gear design without unfolding the fabric, allows easy rolling up of cloth. Its safety shutdown device functions when the cloth is not cut completely. The cloth collecting stick can roll up cloth automatically, to process cloth of diverse sizes, even those which are too small to strain. The cloth-cutting machine is equipped with a roller speed adjustment device, guaranteeing a uniform and stable knitting tightness for the fabric.
High-volume fabric output
Combining the characteristics of double jersey and crease-free for cloths from knitting machines. High fabric output, equipped with a large diameter cylinder and high-speed motor; automatic cutting system to ensure unnecessary fabric loss.
| Model | Cylinder Diameter | Machine Gauges | No. of Feeders | Speed |
|---|---|---|---|---|
| DJOW | 16’’-44’’ | 10-36G | 32 – 96 F/Inch | 15-25 RPM |
Application Area: sportswear and leisurewear
| Equipment | STANDARD | OPTION A | OPTION B |
|---|---|---|---|
| Needle | Groz Beckert, Germany | Samsung, Korea | Yantex, Korea |
| Sinker (For single knit) | Kern Libbers, Germany | Samsung, Korea | Yantex, Korea |
| High Rigidity Special Design Robust Frame | SINTELLI | / | / |
| Zirconia Yarn Guide | SINTELLI | / | / |
| Yarn Feeder | SUN Feeder (B19) | SUN Feeder (B23K) | Global OR Memminger |
| Automatic oil Lubricator | Shengsong, Taiwan | Taiguan, Taiwan | Can be customized |
| Tube Creel | Triangle Creel | Creel with tube | / |
| 4 PCS Teeth Belt | MEGADYNE | / | / |
| Micro-computer control panel (3-shift counter and 4 digital RPM counter) | SINTELLI | Can be customized | / |
| Air System | Taiguan, Taiwan | Shengsong, Taiwan | Taishan |
| Inverter | TOSHIBA, Japan | Delta, Taiwan | Yolico, Japan |
| Motor | Teco, Taiwan | Sintelli | Delta, Taiwan |
| Take Down System | Fabric open take-down system | Sintelli Folding & Rolling take-down system | / |
| Cylinder | SINTELLI Japanese High Precision Alloy Steel material | / | / |
| Machine CAM setting | Single Jersey: 4 tracks Double Jersey: Dial 2 tracks, cylinder 4 tracks | Exchange cam parts for structions | / |
| Lycra feeder | SUN WAL5-4A/B | SUN WAL2-4A/B | Memminger |
